100/4 Canon FL M
The 100/4 Canon FL M was designed for use with a bellows only. It lacked a focusing helical, requiring
the bellows for focusing. It was also too short to reach infinity focus mounted directly on a body. It did
have an automatic diaphragm which worked with the bellows FL. It could focus to infinity on the Bellow
FL, Bellows M and even Bellows R.
Introduced
September 1969
Filter Size
48mm
Construction
5 Elements in 3 Groups
Cap Size
50mm
Angle of View
24 Degrees
Shade
T-50
Minimum Aperture
f/22
Case
C
Weight
220g
List Price, August 1971
$99.95, or $142.20 bundled with Bellows M

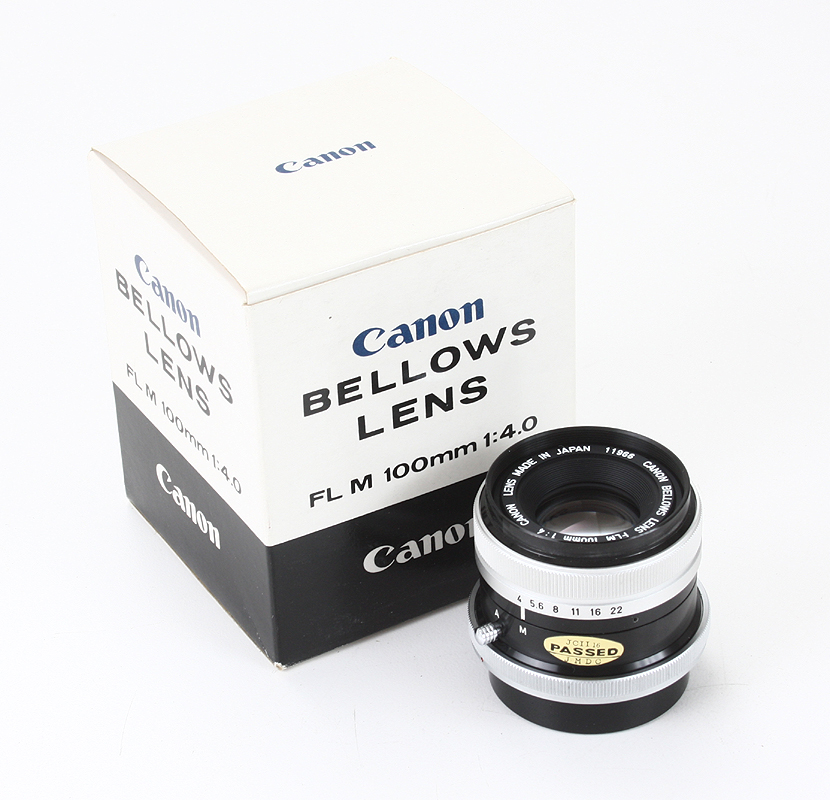

The 100/4 Canon FL M, with box.

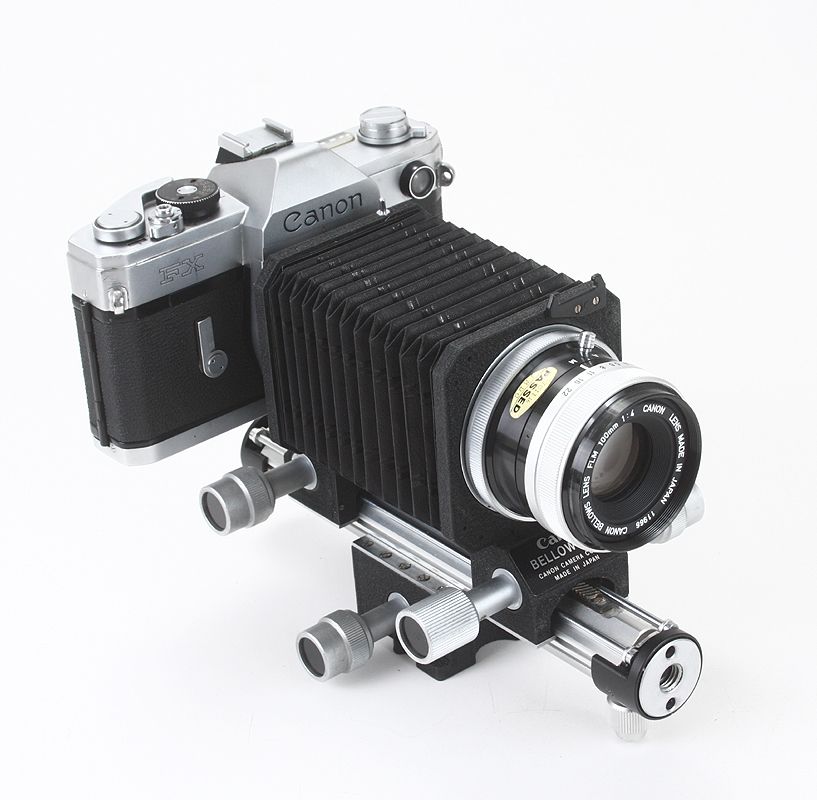

The 100/4 Canon FL M on a Canon FX using the Bellows FL.

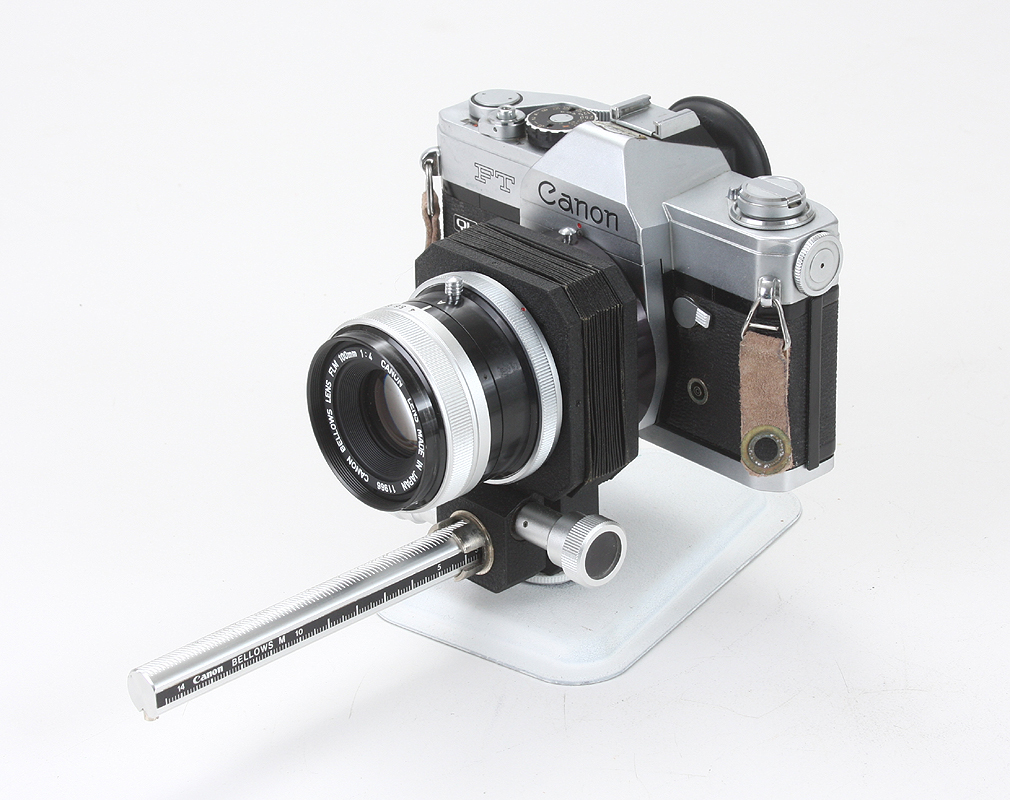

The 100/4 Canon FL M on a Canon FT using the Bellows M.

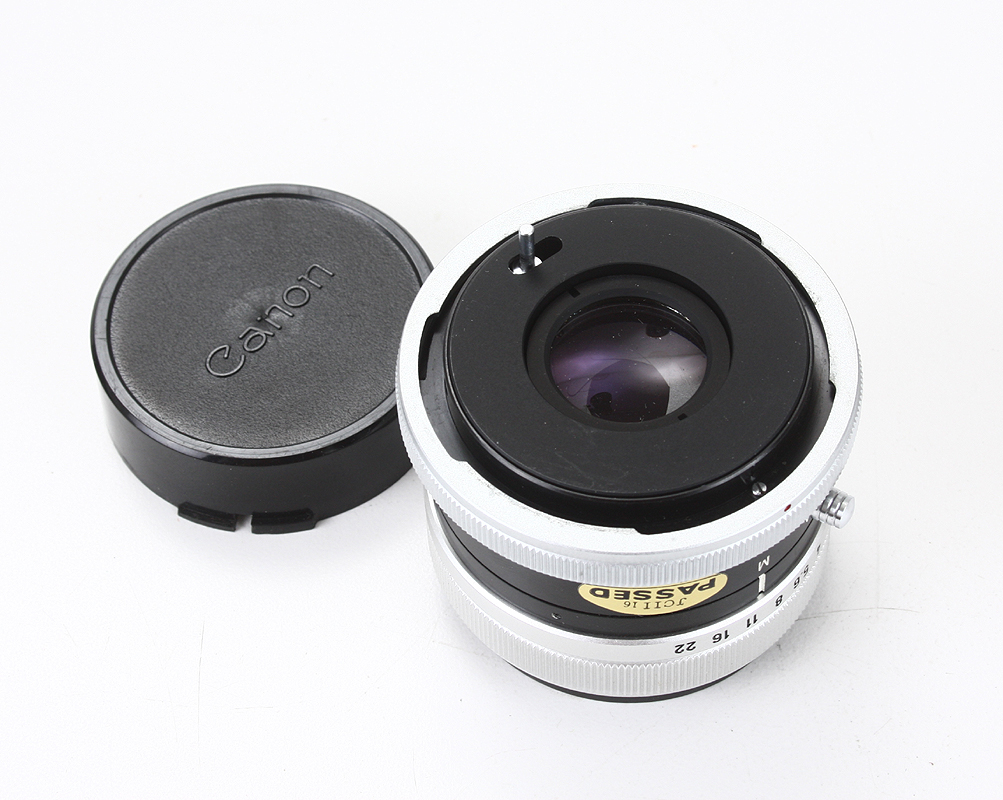

The rear of the lens.
|
